Screen Up Privacy Screens

Screen Up® Corner Post

  • Three-way: corner, joiner or end post
  • Available in 2m height
  • Quick and easy to set up – professional looking results
  • Long-life powder coated aluminium
  • Available in Australia only

Product Details

VERSATILE: CORNER, JOINER OR END POST

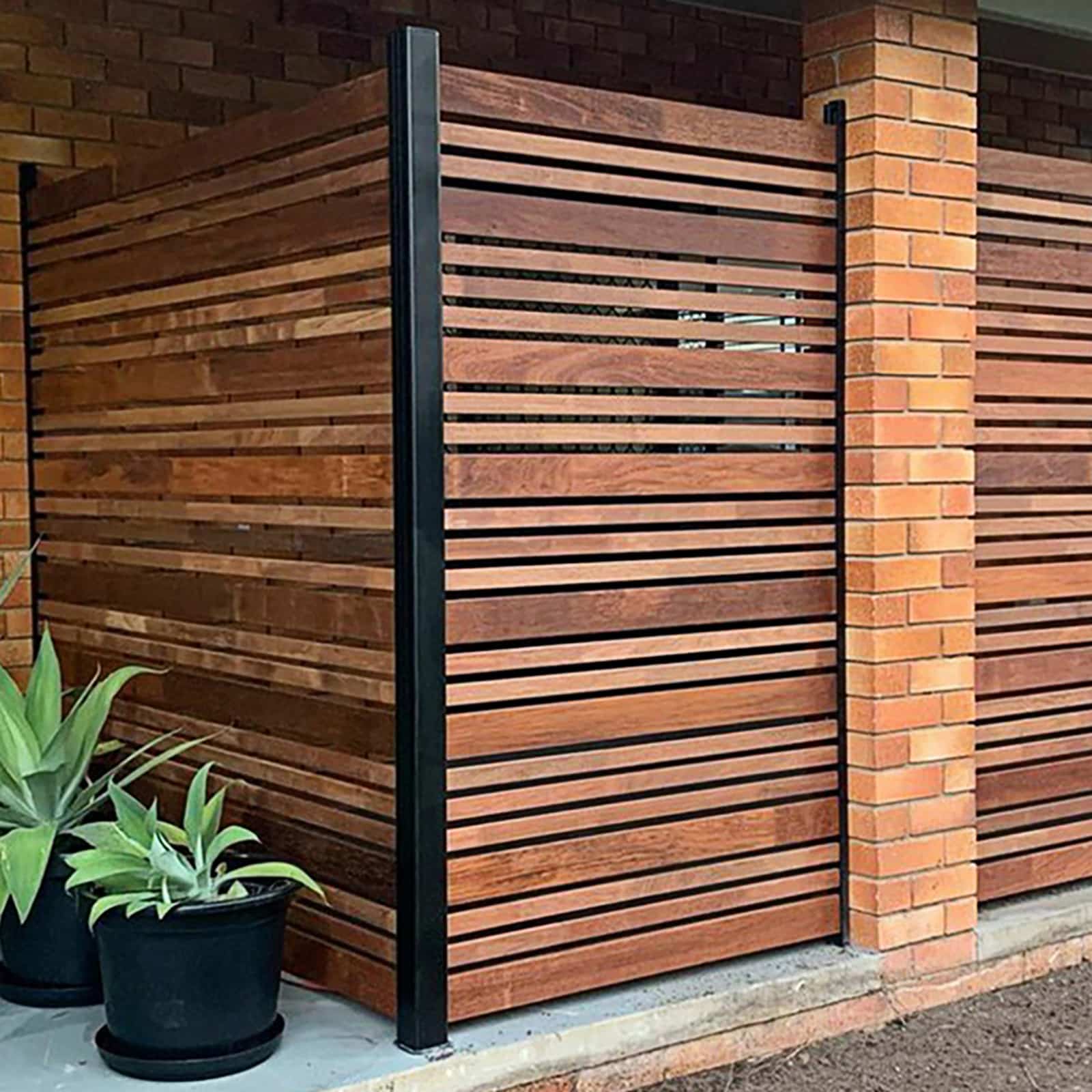

Jack Screen Up Freestanding Corner Post is a versatile and decorative addition to the Screen Up range. Build a complete privacy screen that spans longer distances without wall or post support. It anchors securely to the ground for a complete freestanding solution.

Easy as 1-2-3:

  1. Position and fix the post
  2. Measure and cut timber to size
  3. Insert timber, spacers and end caps

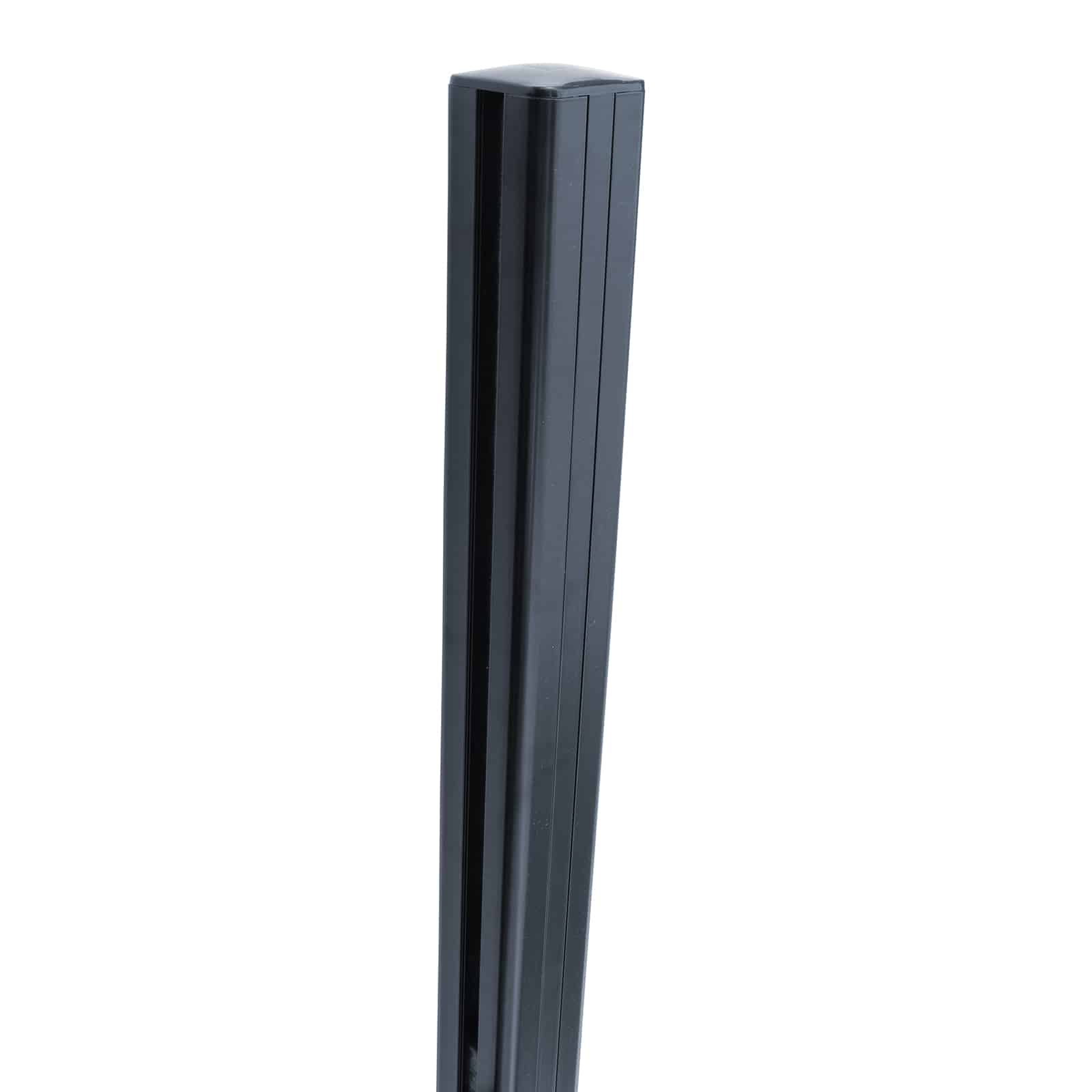

The 3-way post is a square profile and can be used to create 90-degree corners, as a joiner for straight runs of screening, or as an end post.

The pack comes with step-by-step assembly instructions and contains:

  • 3-way Corner Post (x1)
  • 20mm Spacers (x66)
  • 10mm Spacers (x3)
  • Brace/Cover Strip (x2)
  • Lock-in Brackets (x3)
  • Post Cap (x1)

As a general guide, the post will hold 18 slats @ 90mm width or 22 slats @ 70mm width.



Handy Hints:

  • Select the correct mounting base: if you are fixing the post to an existing surface, use the Base Plate (code 16860), if you are pouring your own concrete base, use the Anchor Plate (code 16861)
  • For greater privacy, or slimline look, use Screen Up Slimline Spacers (16870) that provide a 10mm gap between slats (regular gap 20mm)
  • Button head screws (15mm) are recommended for fixing bracing and lock-in brackets
  • Use with Screen Up Wall Mount for a wall-mount start or end
  • Both freestanding and wall-mount systems fit together perfectly to create an integrated privacy screen.

Specifications

Item Product Code Length (mm) For Timber Depth (mm) Finish Colour Country Availability

Freestanding Corner Post

16851197519Powder-CoatBlackAustralia Only
