Building Ties
Wall Ties
- Made to the Australian Standard
- 175mm – Suits max. cavity width 60mm
- 230mm – Suits max. cavity width 120mm
Product Details
Used in the construction of double brick and brick veneer walls
Red (Extra Heavy Hot Dip Galvanised)
Made from 470g/m2 heavily galvanised wire to comply with AS/NZS2699.1:2000 Durability classification R3 down to R0 rating according to AS/NZS2699.1:2000
Stainless Steel
Made from grade 316 stainless steel wire to comply with AS2699.1:2000 Durability classification R4 down according to AS/NZS2699.1:2000
Specifications
| Item | Product Code | Height (mm) | Wire Diameter (mm) | Suits | Pack Qty | Colour | Finish | Country Availability |
|---|---|---|---|---|---|---|---|---|

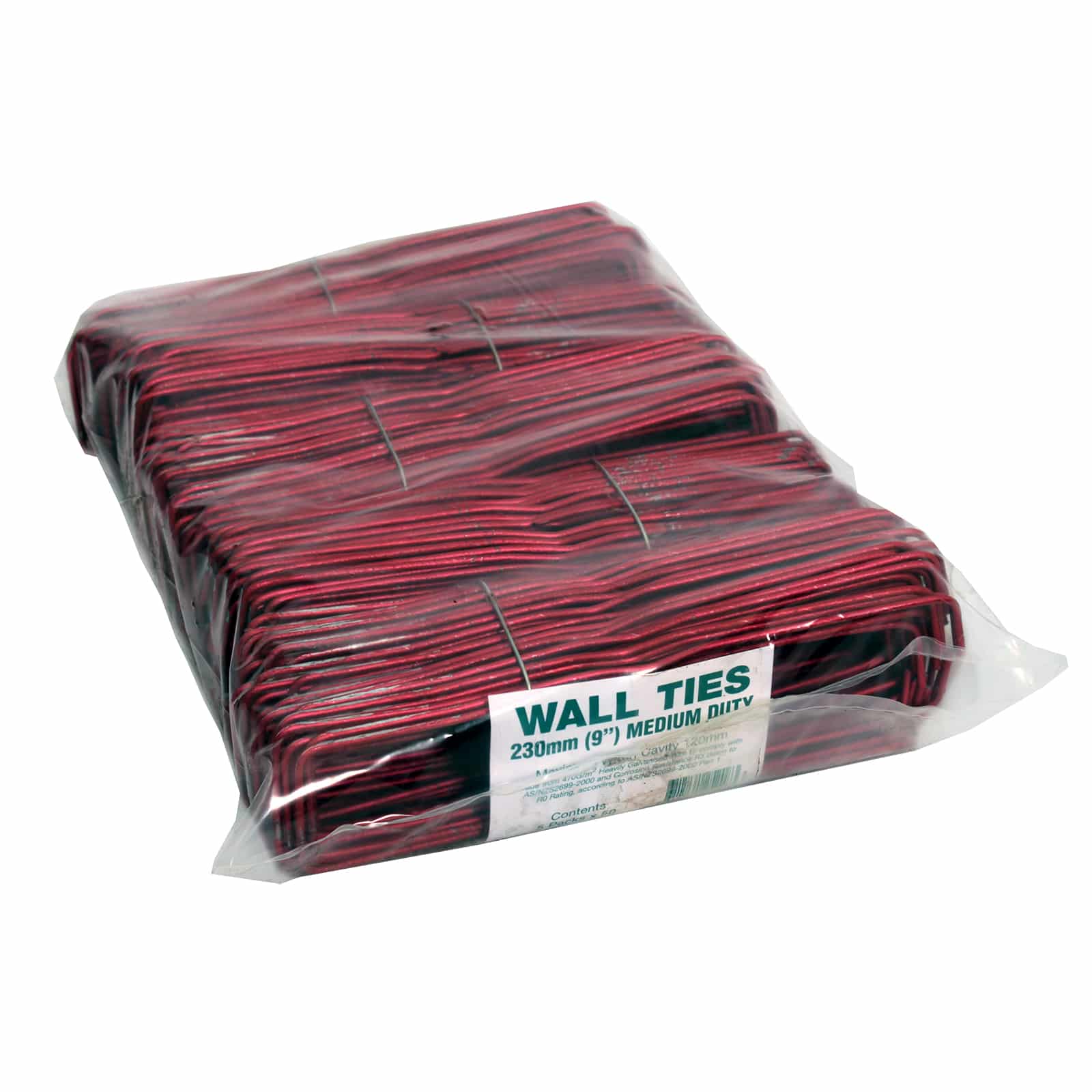

Wall Ties – Red Medium | 25208 | 175 | 3.0 | 120mm cavity width | 250 | Red | 470gsm heavy galvanised | Australia Only |

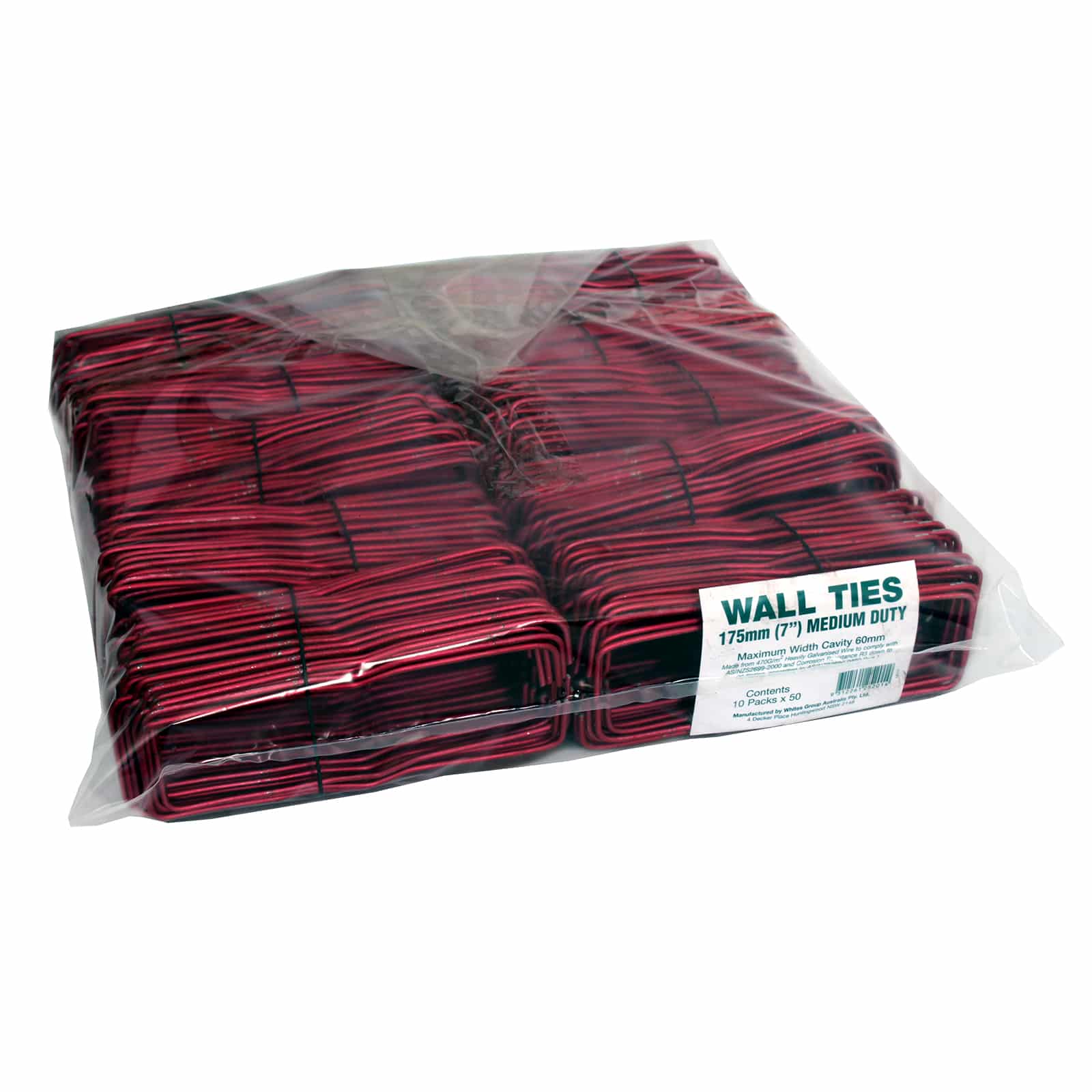

Wall Ties – Red Medium | 25201 | 175 | 3.0 | 60mm cavity width | 500 | Red | 470gsm heavy galvanised | Australia Only |

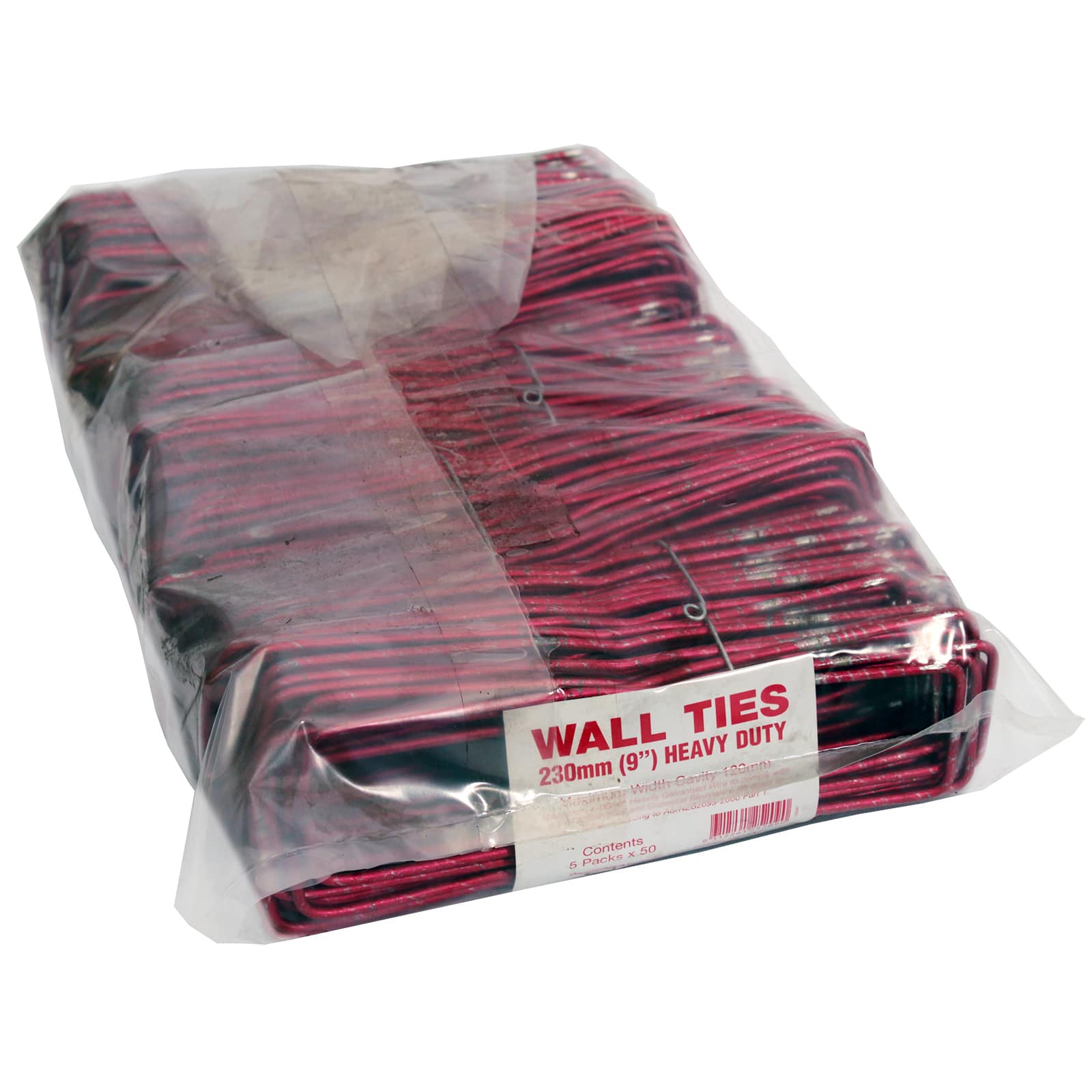

Wall Ties – Red Heavy | 25209 | 230 | 4.0 | 120mm cavity width | 250 | Red | 470gsm heavy galvanised | Australia Only |

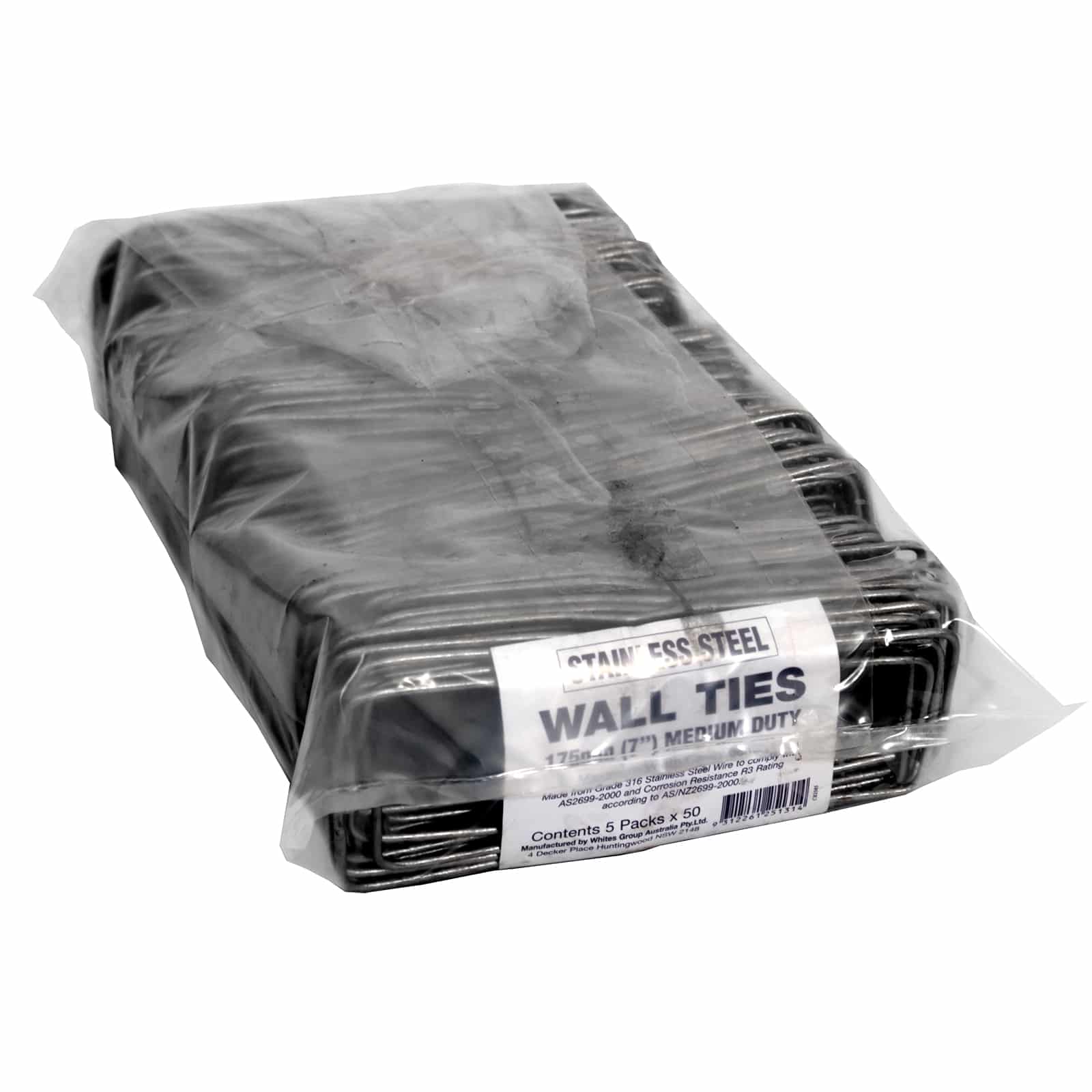

Wall Ties – S/Steel Medium | 25131 | 230 | 3.15 | 60mm cavity width | 250 | - | 316 Stainless Steel | Australia Only |
